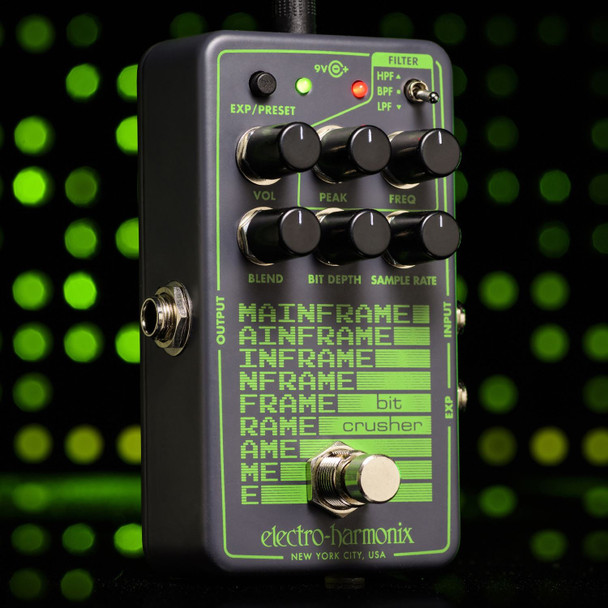

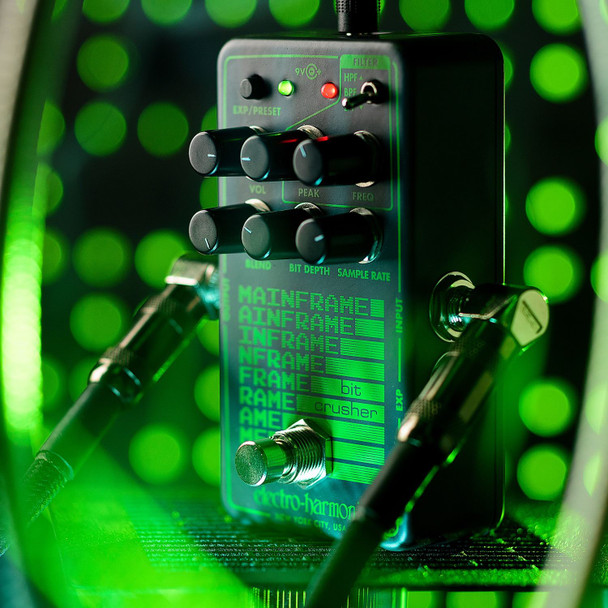

Electro Harmonix Mainframe Bit Crusher

Write a Review
SKU:
19993
UPC:
683274012315
MPN:
MAINFRAME
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
  • Electro Harmonix Mainframe Bit Crusher
MSRP: £198.00
£159.00
Inc. VAT
MSRP: £165.00
£132.50
Ex. VAT
— You save £39.00

Description

The Mainframe provides sample rate reduction ranging from 48kHz to 110Hz. A little background… the sample rate is the number of times per second that a sample or snapshot of an analog signal is taken. For example, CDs (remember them?) had a sample rate of 44.1kHz which means that the original analog signal is sampled 44,100 times per second.

The sample rate defines the frequency range that can be reproduced while maintaining good fidelity. When the sample rate is reduced the quality of the audio is degraded and aliasing occurs. Aliasing means audible artifacts created when higher frequencies are sampled at an inadequate rate and the result is distortion. The Mainframe’s sample rate range is wide enough to take you from sounds that are quite pristine to sounds that are unrecognizable when compared to the input signal.

It also provides bit crushing ranging from 24-bit to 1-bit. What does that mean? Bit crushing is bit depth reduction. Back to our CD example… CDs used a 16-bit bit depth meaning that each of its samples was represented by 16-bits of information. Higher bit depths can accurately represent a greater dynamic range while bit crushing increases the number of sampling errors and creatively degrades the sound to bring us back to those nasty “old school” sounds we love.

The Mainframe’s selectable High/Low/Band-Pass filter lets the user shape the artifacts of the bit crushing and sample rate. Another very cool feature is its Sample Rate Tuning Mode where the pedal analyzes your input signal in real-time and sets the sample rate to match the pitch of your signal, or a set interval above your signal. This allows you to set the sample rate to match the key of a song, or it will continually adjust the sample rate based on what you play!”

  • Sample Rate Reduction ranging from 48kHz to 110Hz
  • Bit Depth Reduction ranging from 24-bit to 1-bit
  • Selectable High/Low/Band-Pass filter to shape the artifacts of the bit crushing and sample rate reduction
  • Sample Rate Tuning Mode allows you to set the sample rate to match the key of a song, or continually adjust the sample rate based on what you play on your instrument
  • Programmable preset or expression pedal setting allows you to save your sound or control any combination of the Mainframe’s knobs with an external expression pedal
  • Secondary knob parameters allow you to fine-tune the Mainframe’s effect
  • High quality buffered bypass and silent switching
  • Power supply included

SPECIFICATIONS

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 90mA
