Description

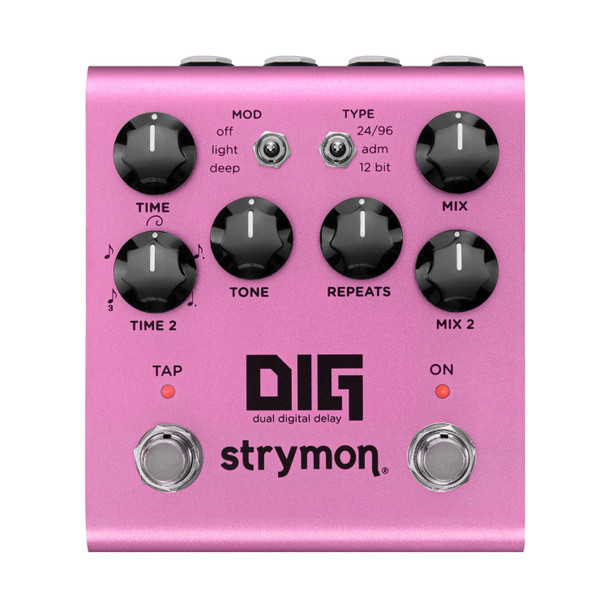

Delay Doppelgänger.
DIG unearths the true soul of digital delay and doubles it — two simultaneous, integrated delays with captivating rack delay voicings from the 1980s and today, for incredible expressive potential.
Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options. Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails, all in a compact, pedalboard-friendly format.
Rack To The Future.
Rack-mount digital delays of the ’80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays that had yet been heard, but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever.
Our thorough investigation of digital delay technology reveals the unique personalities that these delays possess. Delve into DIG’s three digital delay voicings: the early ’80s adaptive delta modulation mode, the mid-’80s 12 bit pulse code modulation mode, and the modern high-resolution 24/96 mode.
Multiply these distinct voicings by two and get DIG — your perfect dual delay ally.
Features:
- Two simultaneous delays + unique digital rack delay voicings (20ms-1.6s range/40ms-3.2s w Half Note Delay/1 Subdivision)
- Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats
- One modern and two classic digital delay voicings: 24/96, adm, 12 bit
- 5 subdvns: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter and 3 choices for delay modulation: Off/Light/Deep
- 5 “hidden” knobs for deep dual delay control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
- Selectable Free Mode disables subdivisions and synchronization
- Press and hold Circular Repeats effect
- Three signal routing configurations: Series, Parallel, Ping Pong
- Ultra low noise 24-bit 96kHz converters, 115dB typical SNR
- TRS stereo input (with stunning new JFET preamp) and output, plus MONO/STEREO input switch on the back of the unit
- Full MIDI control, MIDI clock sync and 300 presets
- USB port for updates and MIDI over USB
- TRS MIDI jacks: bi-directional MIDI communication with a single cable using the Conduit interface
- Editor/librarian support via USB
