Description

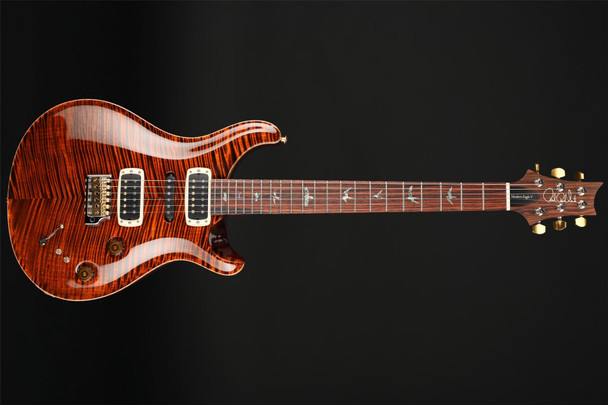

The Modern Eagle V is an innovative instrument that offers highly musical tones for both recording and playing live. Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the mini toggles allow players to individually separate the humbucker coils, turning the outside pickups into true single coils. This electronics design puts a whole set of classic and new tones at your fingertips.
Appointments of this Wood Library guitar include a maple '10 top' and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck, bone nut, and PRS patented Gen III tremolo. Our guitars feature cocobolo fingerboards with upgraded Old School Paua Birds, smoked black hardware.
BODY
Body Construction: Solidbody
Top Wood: Maple '10 Top'
Back Wood: Mahogany
Top Carve: Violin
NECK
Number of Frets: 22
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern
Neck Depth At The Nut: 7/8"
Width Of Fretboard At The Nut: 1 11/16"
Width Of Fretboard At The Body: 2 1/4"
Fretboard Wood: Cocobolo
Fretboard Radius: 10"
Fretboard Inlay: Old School Birds - Paua

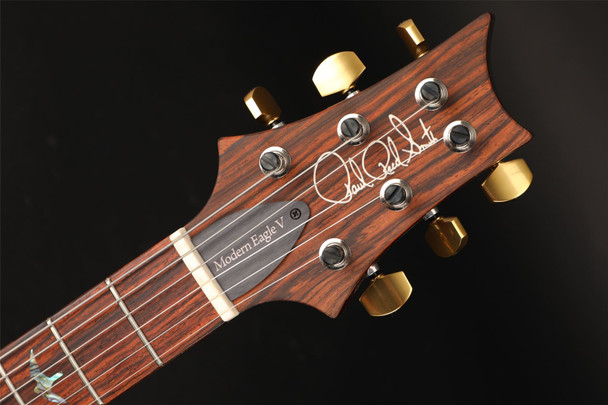

Headstock Logo: Signature, Inlaid
NECK/BODY ASSEMBLY
Neck/Body Assembly Type: Set
HARDWARE
Bridge: PRS Patented Tremolo, Gen III

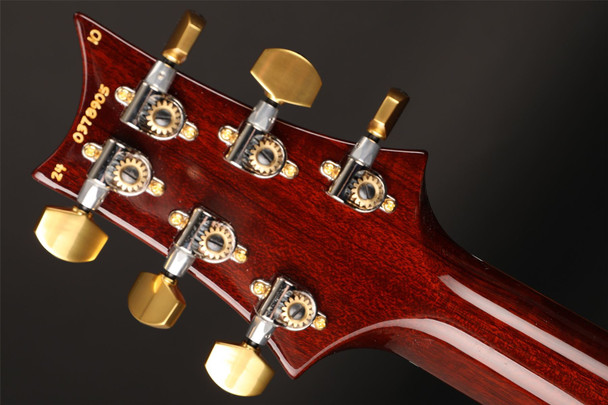

Tuners: PRS Phase III Locking
Hardware Type: Smoked Black
Nut: PRS
Truss Rod Cover: "Modern Eagle V"
ELECTRONICS
Treble Pickup: TCI
Middle Pickup: NS-01
Bass Pickup: TCI
Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle Coil Split Switches
ADDITIONAL INFO
Strings: PRS Signature 10-46
Tuning: Standard (6 String): E, A, D, G, B, E
Case: PRS Hardshell Case
